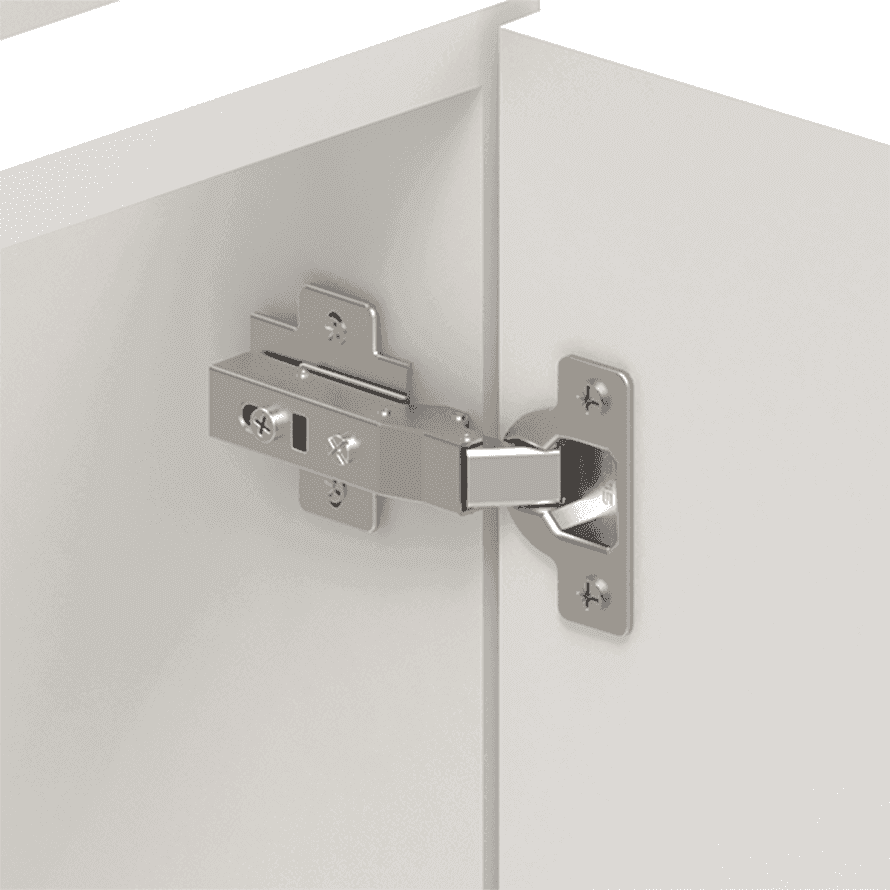

Regular Hinge standard application
Proven solution for standard applications

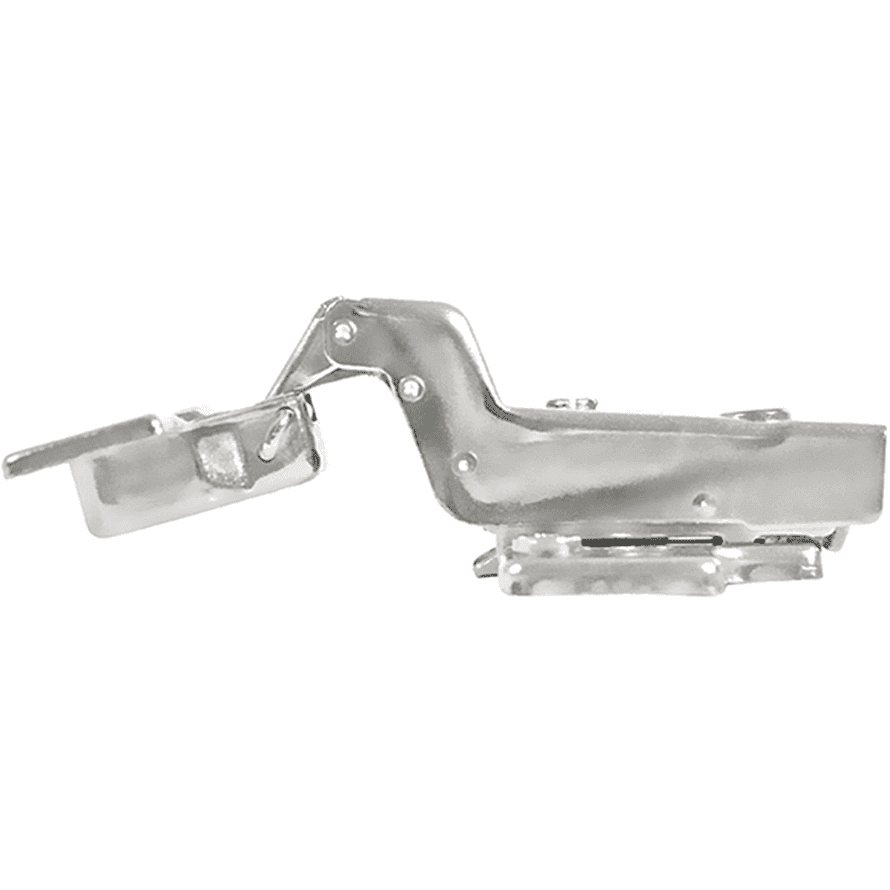

The Regular Hinge is a functional solution for standard furniture applications. The integrated Soft Close mechanism ensures smooth and quiet closing of the front, and the CLICK-ON system allows for quick assembly and disassembly of the arm without tools. The hinge is equipped with a Ø35 mm cup with a depth of 12 mm and is compatible with guides with cam adjustment.
Cechy produktu
- Opening angle 110°
- Cup Ø35 mm
- Cup depth 12 mm
- Adjustable in 3 planes
- Arm mounting in CLICK-ON system
- Integrated soft close (Soft Close)
- Tested according to standardPN-EN 15570:2010 for 80,000 cycles
- Included: hinge, guide, and screws
Kolory i wykończenia
- 064Nickel
Overlay 110° angle 0°

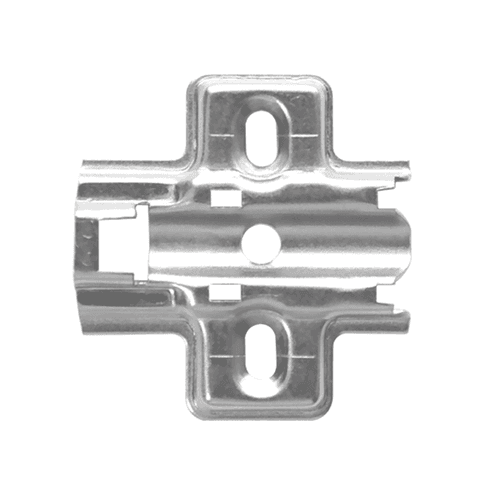

Cross guide H=0 with euro screws 6.3 x 14
| Number of euro screws 6.3 x 14 | Number of screws 3.5 x 16 | Index |
|---|---|---|
| 2 | 2 | TJ01.6966.01.064 | |
Cross guide H=0 for screw 3.5 x 16
| Number of screws 3.5 x 16 | Index |
|---|---|
| 4 | TJ01.6986.01.064 | |
Twin 110° bend 8°
Cross guide H=0 with euro screws 6.3 x 14
| Number of euro screws 6.3 x 14 | Number of screws 3.5 x 16 | Index |
|---|---|---|
| 2 | 2 | TJ09.0032.01.064 | |
Cross guide H=0 for screw 3.5 x 16
| Number of screws 3.5 x 16 | Index |
|---|---|
| 4 | TJ09.0035.01.064 | |
Recessed 110° bend 15°
Cross guide H=0 with euro screws 6.3 x 14
| Number of euro screws 6.3 x 14 | Number of screws 3.5 x 16 | Index |
|---|---|---|
| 2 | 2 | TJ09.0033.01.064 | |
Cross guide H=0 for screw 3.5 x 16
| Number of screws 3.5 x 16 | Index |
|---|---|
| 4 | TJ09.0036.01.064 | |
