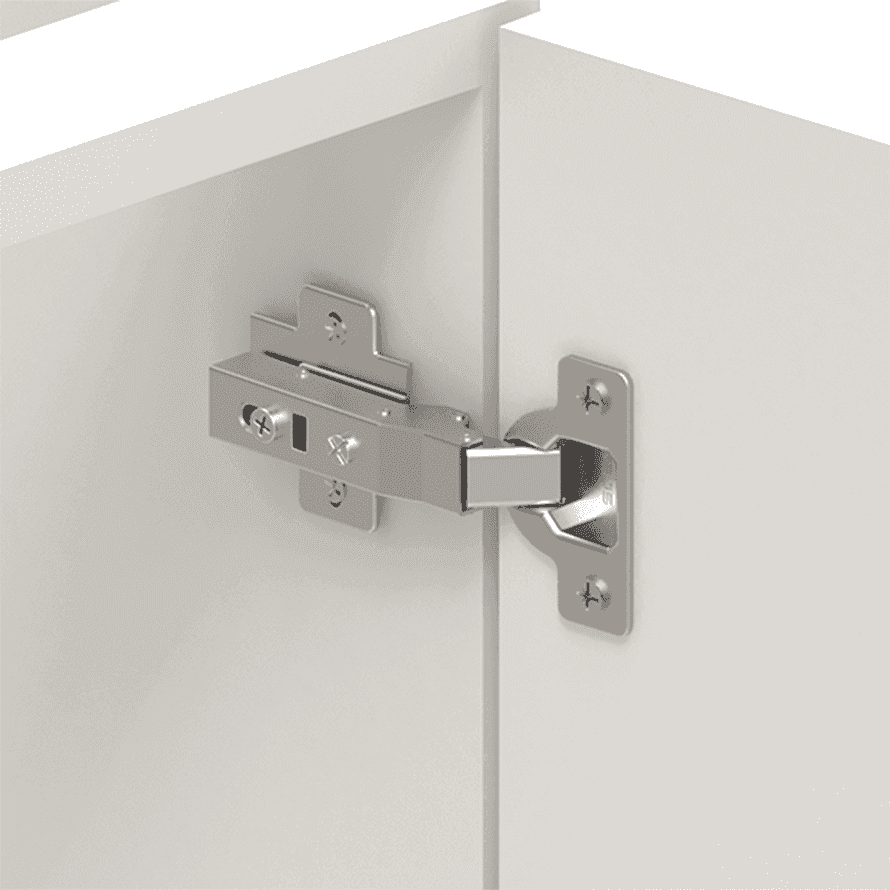

Regular Hinge Soft Close Plus
Even greater comfort of silent closing
The Regular Soft Close Plus Hinge is a solution for standard furniture applications, equipped with the Soft Close Plus soft closing mechanism. It ensures smooth and quiet closing of the front and convenience in everyday use. The 110° opening angle, three-dimensional adjustment, and quick installation system facilitate proper alignment and installation of the front.
Cechy produktu
- 110° opening angle
- Cup Ø35 mm
- Cup depth 12 mm
- Three-dimensional adjustment
- CLICK-ON arm installation
- Integrated Soft Close Plus
- Tested for 80,000 cycles
Kolory i wykończenia
- 064Nickel
Overlay 110° bend 0°

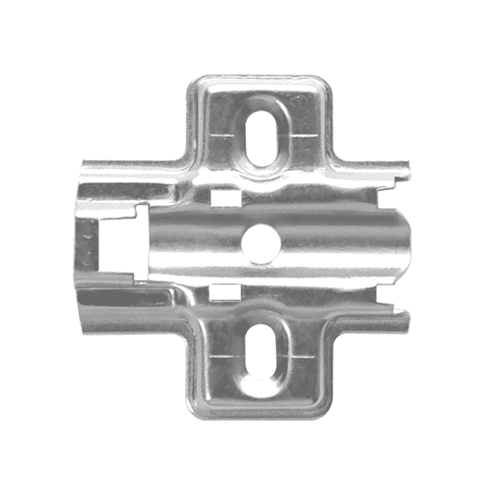

Cruciform mounting plate H=0 with euro screws 6.3 x 14
| Number of euro screws 6.3 x 14 | Number of screws 3.5 x 16 | Index |
|---|---|---|
| 2 | 2 | TJ09.0031.01.064 | |
Cruciform mounting plate H=0 for screw 3.5 x 16
| Number of screws 3.5 x 16 | Index |
|---|---|
| 4 | TJ09.0034.01.064 | |
Twin 110° bend 8°
Cruciform mounting plate H=0 with euro screws 6.3 x 14
| Number of euro screws 6.3 x 14 | Number of screws 3.5 x 16 | Index |
|---|---|---|
| 2 | 2 | TJ09.0032.01.064 | |
Cross guide H=0 for screw 3.5 x 16
| Number of screws 3.5 x 16 | Index |
|---|---|
| 4 | TJ09.0035.01.064 | |
Recessed 110° bent 15°
Cross guide H=0 with euro screws 6.3 x 14
| Number of euro screws 6.3 x 14 | Number of screws 3.5 x 16 | Index |
|---|---|---|
| 2 | 2 | TJ09.0033.01.064 | |
Cross guide H=0 for screw 3.5 x 16
| Number of screws 3.5 x 16 | Index |
|---|---|
| 4 | TJ09.0036.01.064 | |
