Lifter
| Version | Coverage | Index |
|---|---|---|
| left | 062 | WY01.0207.01.062 | |
| right | 062 | WY01.0208.01.062 | |

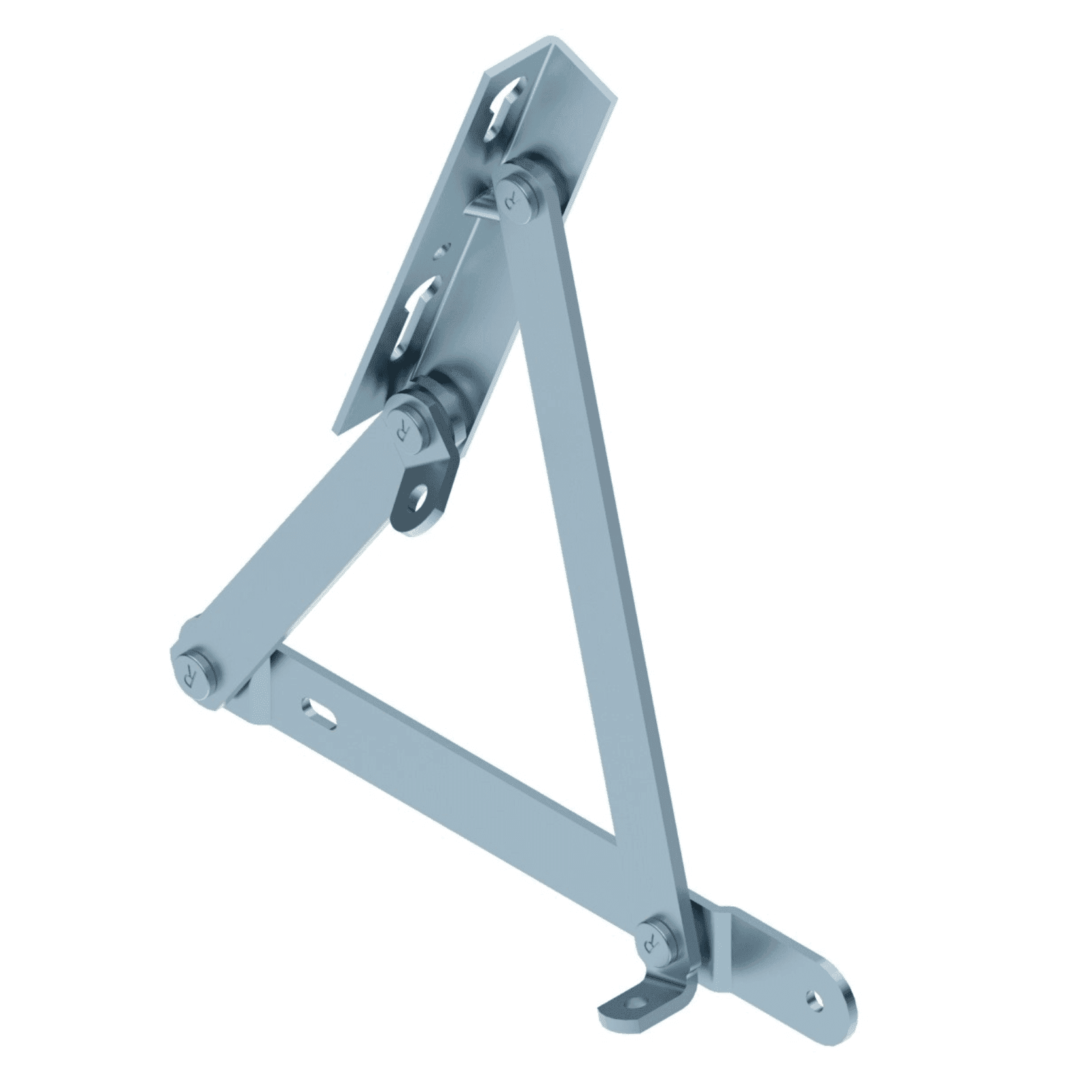

PT01 Sofa Lifting Mechanism
PT01 Sofa Lifting Mechanism
The PT01 sofa lifting mechanism is designed to assist in lifting movable elements of upholstered furniture. The mechanism's construction allows for convenient lifting of the element and works with a dedicated tension spring.
Product features
- Metal construction
- Lift-assist mechanism
- Available in left and right versions
- Dedicated tension spring
Colors and finishes
- 062White zinc
Dedicated Accessories
Tension spring 2.8x25x142 - F=150N / 3.5x27x142 - F=360N
| Lo [mm] | d [mm] | De [mm] | Ln [mm] | Fn [N] | Coverage | Index |
|---|---|---|---|---|---|---|
| 142 | 2.8 | 25 | 226 | 150 | 062 | WY01.0075.01.062 | |
| 142 | 3.5 | 25 | 227 | 360 | 062 | WY01.0076.01.062 | |
