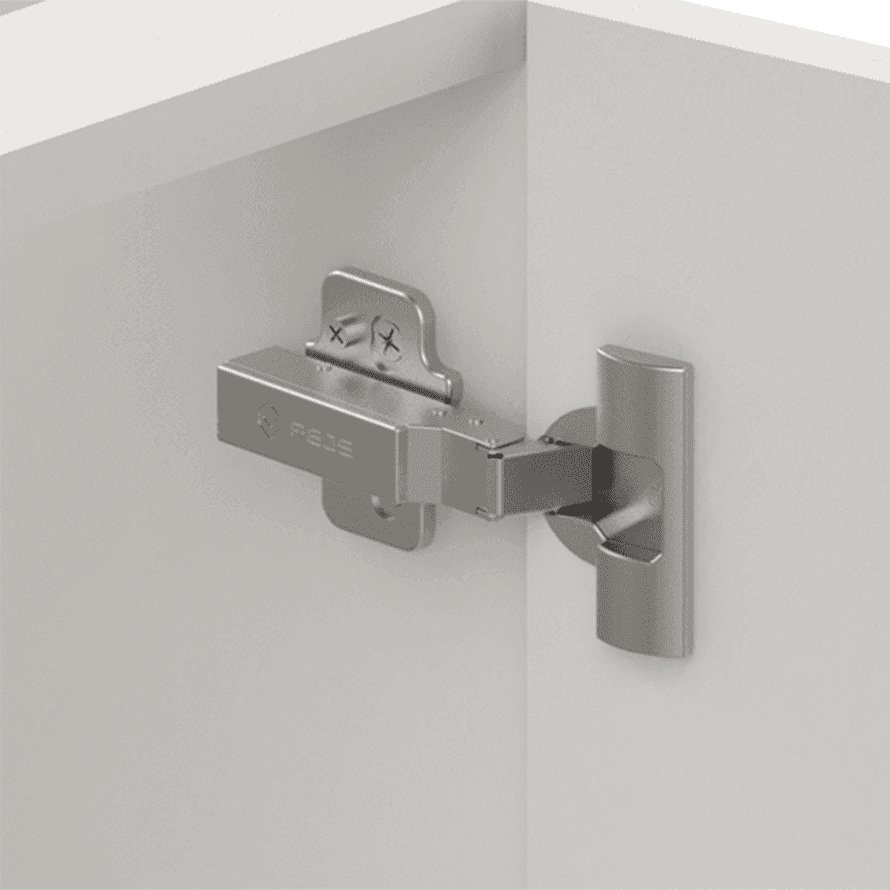

Hinge Expert standard application
Everyday use technology
Furniture hinge designed for mounting fronts in furniture bodies. The construction based on a Ø35 mm cup ensures stable mounting and precise adjustment of the front's position. Depending on the version, the hinge is equipped with a soft-close system and a quick assembly mechanism, which facilitates installation and subsequent adjustment. A wide selection of variants allows choosing the appropriate model for almost any type of furniture construction.
Cechy produktu
- Opening angle 110°
- Cup Ø35 mm
- Cup depth 12 mm
- Adjustment in 3 dimensions
- CLICK-ON arm mounting system
- Integrated soft close (Soft Close)
- Tested according to the standardPN-EN 15570:2010 for 80,000 cycles
- Included: hinge, guide, caps, and screws
Kolory i wykończenia
- 064Nickel
Twin 110°, angle 8°
Cross guide H=0 with euro screws 6.3 x 14
Cross guide H=0 with eccentric adjustment for screw 3.5 x 16
| Number of screws 3.5 x 16 | Index |
|---|---|
| 4 | TJ09.0016.01.064 | |

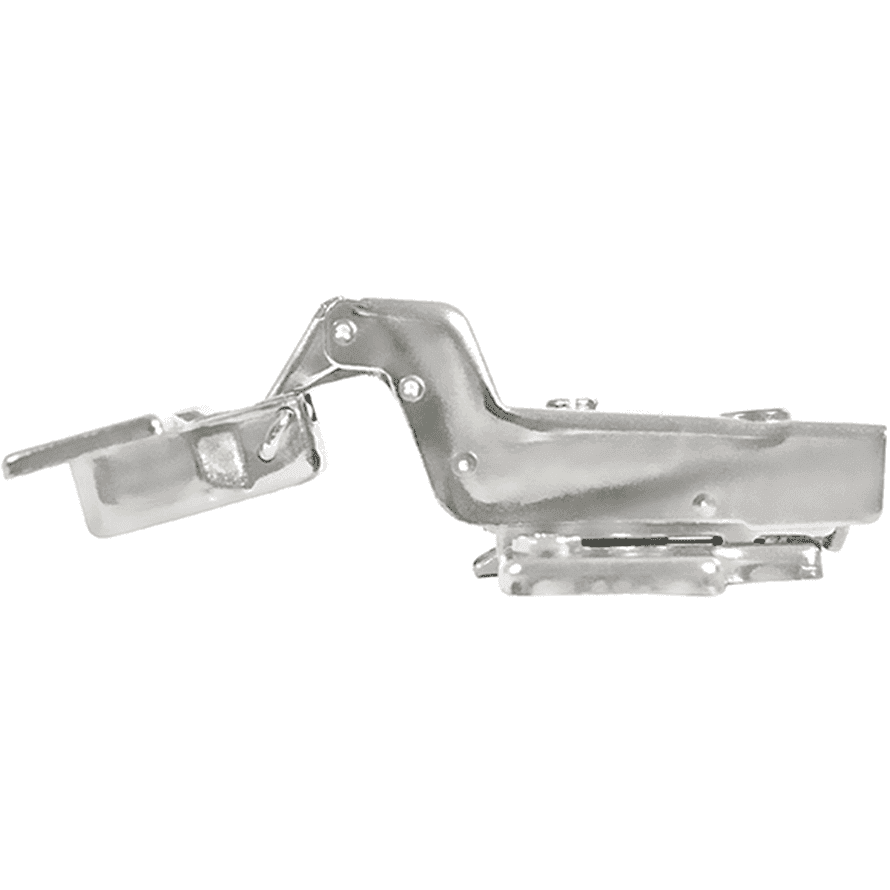

Recessed 110°, angle 15°
Cross guide H=0 with Euro screws 6.3 x 14
| Number of Euro screws 6.3 x 14 | Number of screws 3.5 x 16 | Index |
|---|---|---|
| 2 | 4 | TJ01.7177.01.064 | |
Cross guide H=0 with eccentric adjustment for screw 3.5 x 16
| Number of screws 3.5 x 16 | Index |
|---|---|
| 4 | TJ09.0017.01.064 | |
