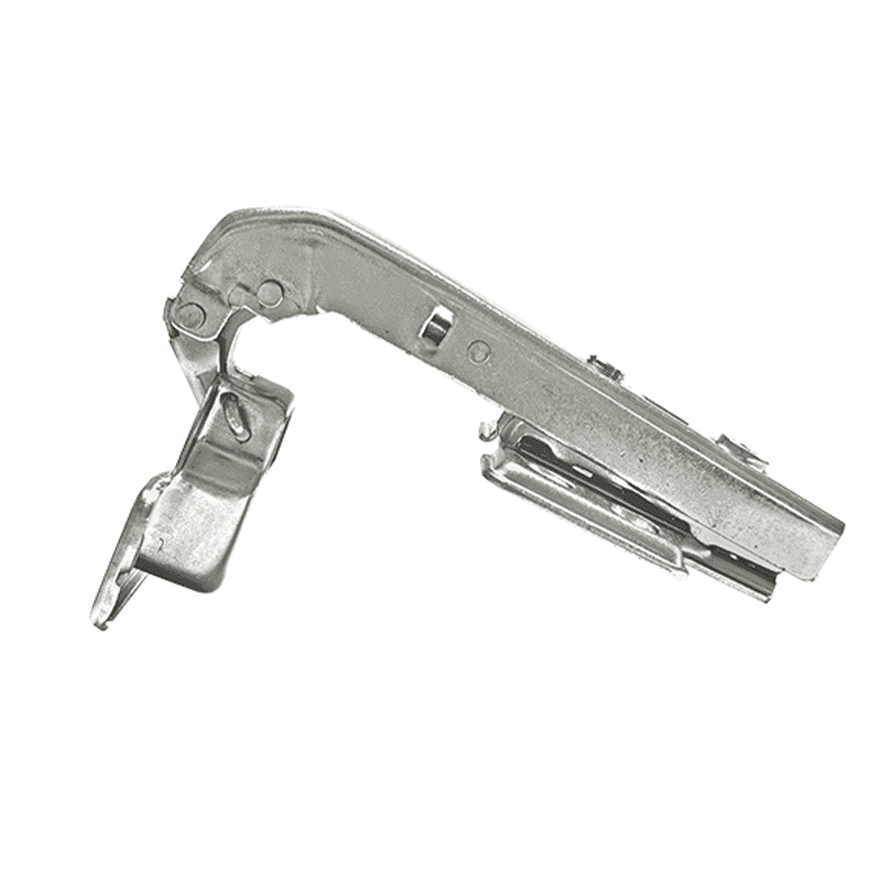

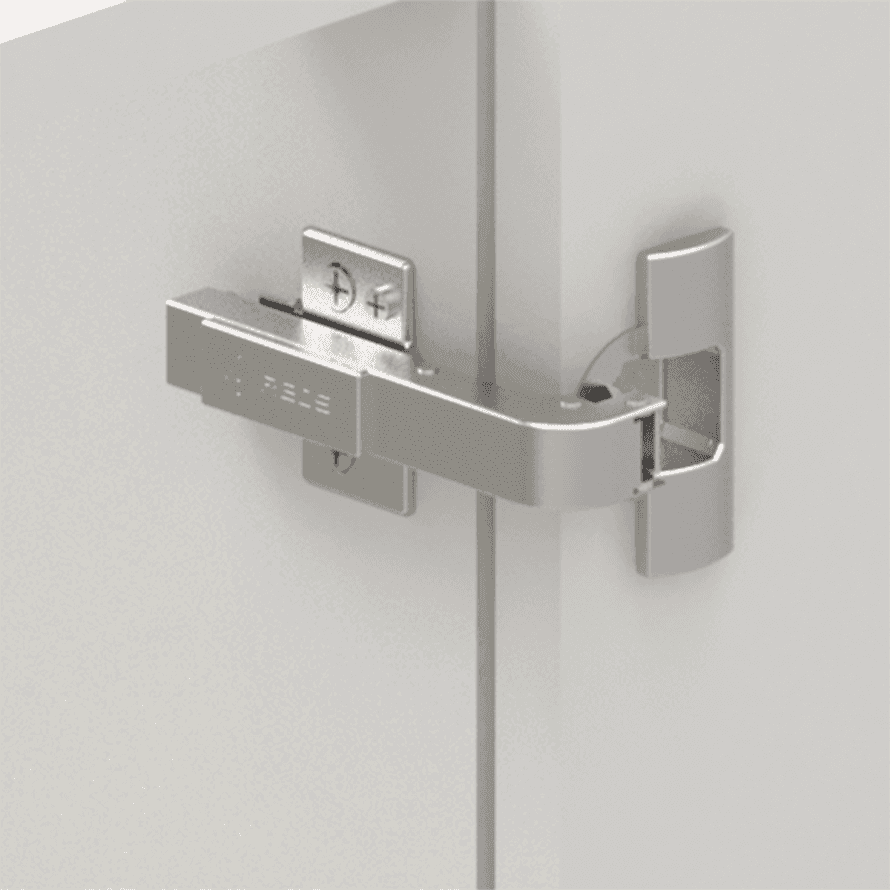

Expert Hinge for Parallel Application

Expert Hinge for Parallel Application

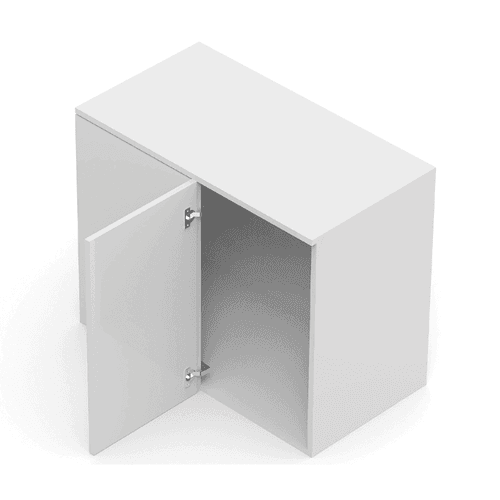

Functional solution for parallel fronts

The Expert hinge for parallel application is designed for mounting fronts in unconventional furniture arrangements where parallel alignment of elements is required. The hinge construction ensures stable mounting and the possibility of precise adjustment of the front position. The CLICK-ON quick installation system facilitates installation, and the integrated soft close increases the comfort of daily use.

Cechy produktu

  • Opening angle 90°
  • Cup Ø35 mm
  • Cup depth 12 mm
  • Adjustment possible in 3 dimensions
  • Arm mounting in the CLICK-ON system
  • Integrated soft close
  • Tested according to standard
    PN-EN 15570:2010 for 80,000 cycles
  • Included: hinge, guide, caps, and screws

Kolory i wykończenia

  • Nickel
    064
    Nickel

Hinge Components

Recessed 90°

Cruciform guide H=0 with Euro screws 6.3 x 14

Number of Euro screws 6.3 x 14Number of screws 3.5 x 16Index
42
TJ01.3009.01.064
|

Cruciform guide H=0 for screw 3.5 x 16

Number of screws 3.5 x 16Index
6
TJ01.3010.01.064
|

Cross guide H=0 with eccentric adjustment for screw 3.5 x 16

Number of screws 3.5 x 16Index
4
TJ01.3014.01.064
|
