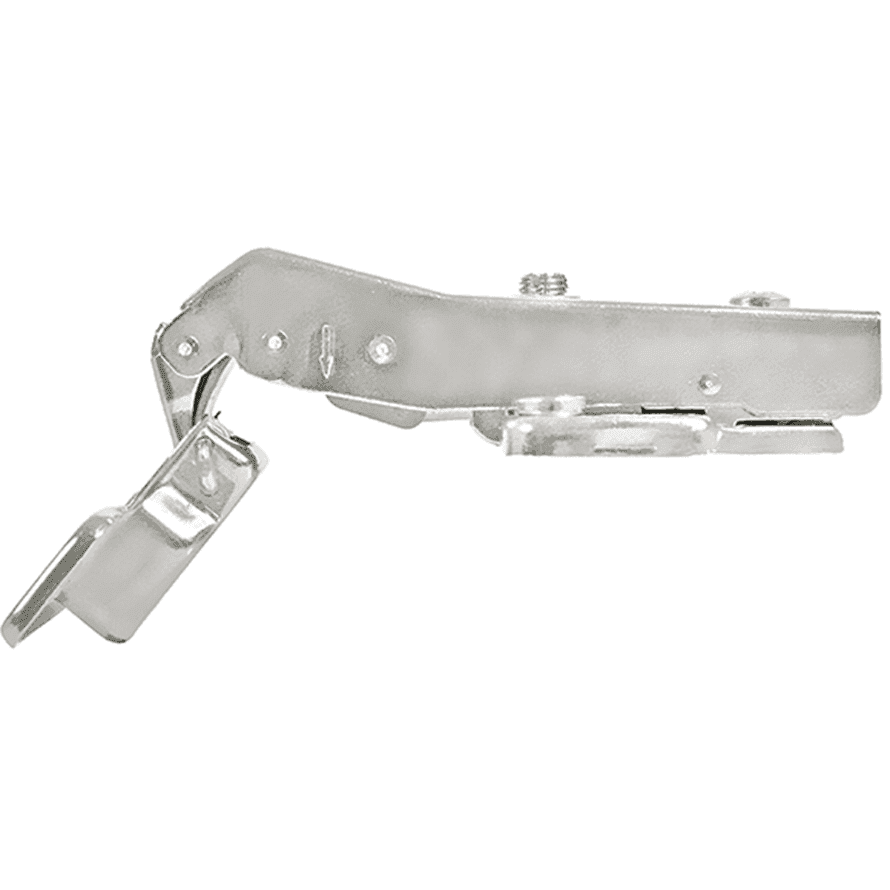

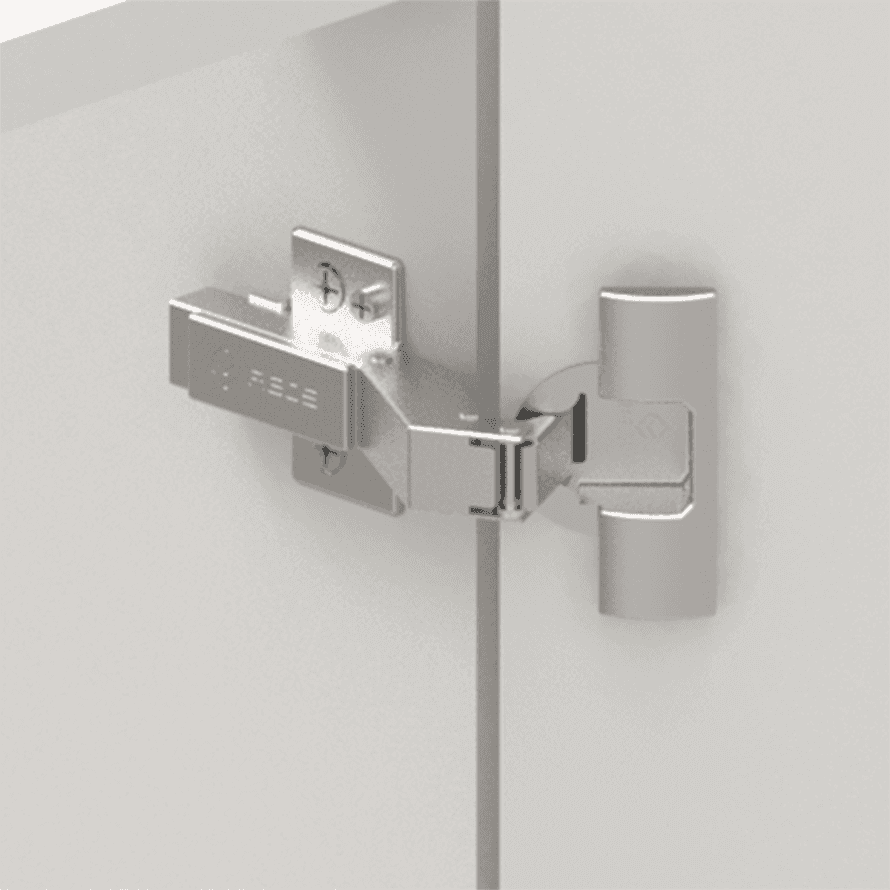

Expert Hinge angular application +45°

Expert Hinge angular application +45°

Solution for angled installation

The Expert Hinge for angular application +45° is designed for mounting fronts in furniture with non-standard corner construction. It allows for a convenient and stable connection of the front with the body while maintaining the appropriate angle of setting. The quick installation system facilitates hinge installation, and the possibility of adjustment allows for precise positioning of the front. This is a practical solution for corner cabinets and installations requiring front mounting at an angle.

Cechy produktu

  • Opening angle 100°
  • Cup Ø35 mm
  • Cup depth 12 mm
  • Adjustable in 3 dimensions
  • CLICK-ON arm mounting system
  • Integrated soft close
  • Tested according to standard
    PN-EN 15570:2010 for 80,000 cycles
  • Included: hinge, guide, caps, and screws

Kolory i wykończenia

  • Nickel
    064
    Nickel

Hinge Components

Partially overlay +45° I

Cross guide H=0 for screw 3.5 x 16

Number of screws 3.5 x 16Index
6
TJ01.2805.01.064
|

Cross guide H=0 with eccentric adjustment for screw 3.5 x 16

Number of screws 3.5 x 16Index
4
TJ01.2808.01.064
|
