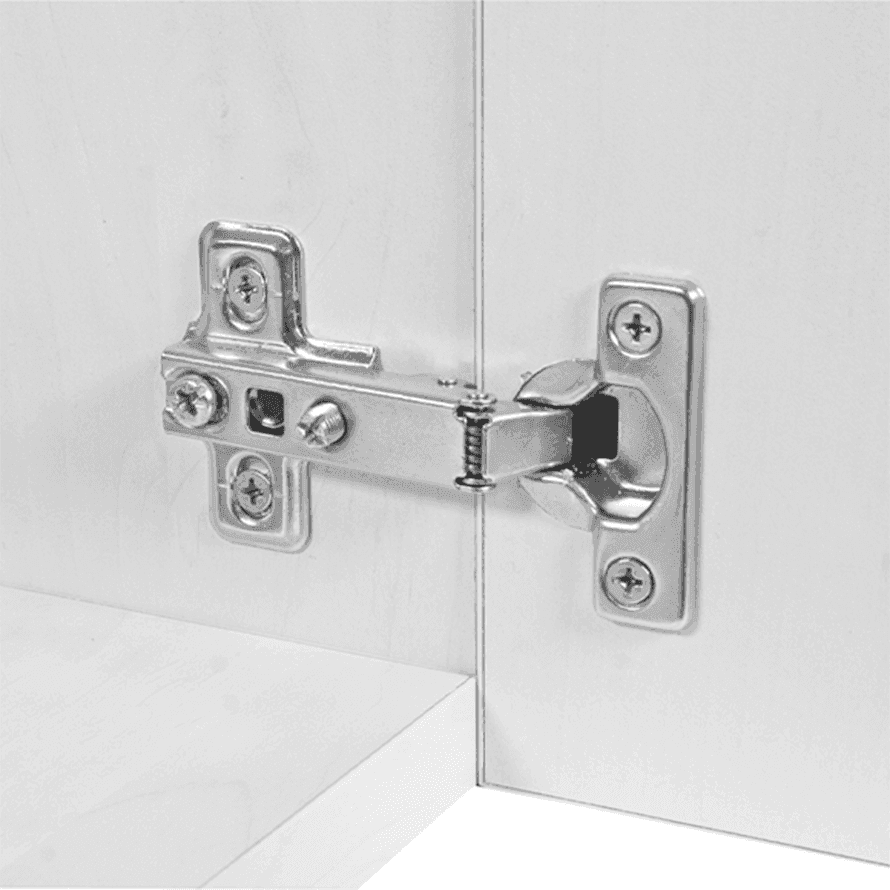

Basic Mini Hinge - Standard Application
Compact Hinge for Standard Applications

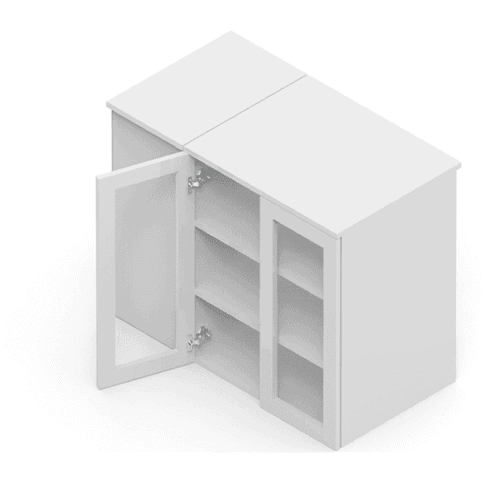

The Basic Mini Hinge is a compact solution for standard furniture applications. Its small dimensions allow it to be used in constructions where space-saving is important, and the 110° opening angle ensures convenient use of the front. The hinge allows for adjustment, enabling precise positioning of the doors.
Product features
- 110° opening angle
- Cup Ø26 mm
- Cup depth 10 mm
- Adjustability
- Guide H=0
- Tested for 80,000 cycles
Colors and finishes
- 064Nickel

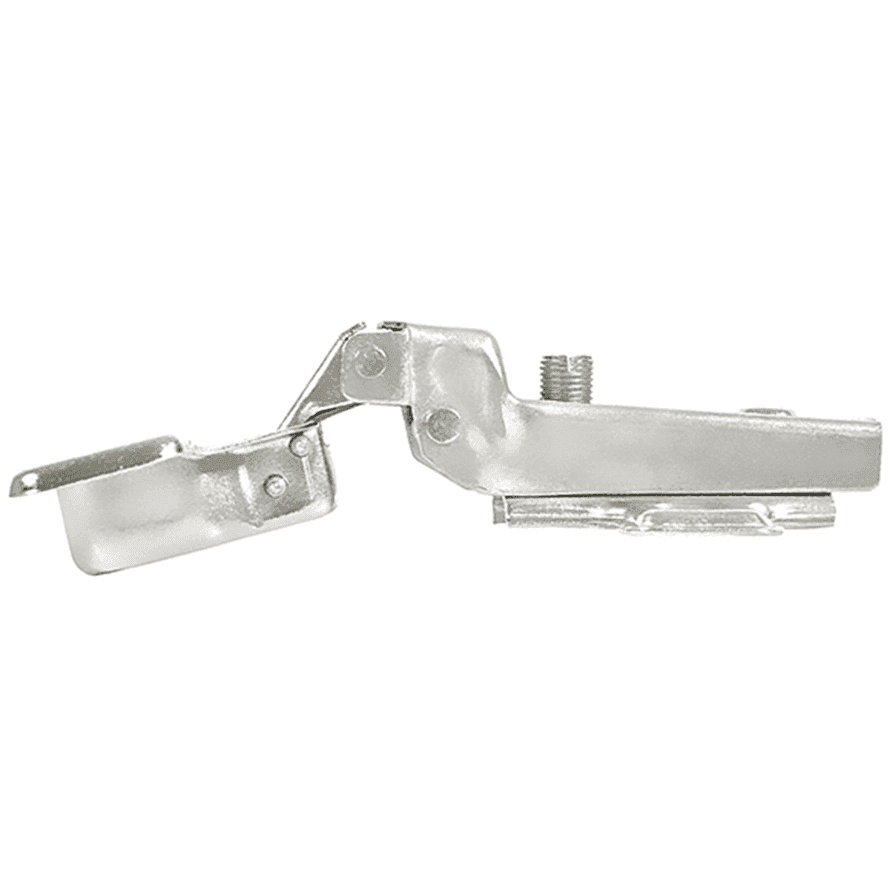

Overlay 110° bend 0°
Cross mounting plate H=0 with Euro screws 6.3 x 14
| Number of Euro screws 6.3 x 14 | Index |
|---|---|
| 2 | TJ09.0024.01.064 | |

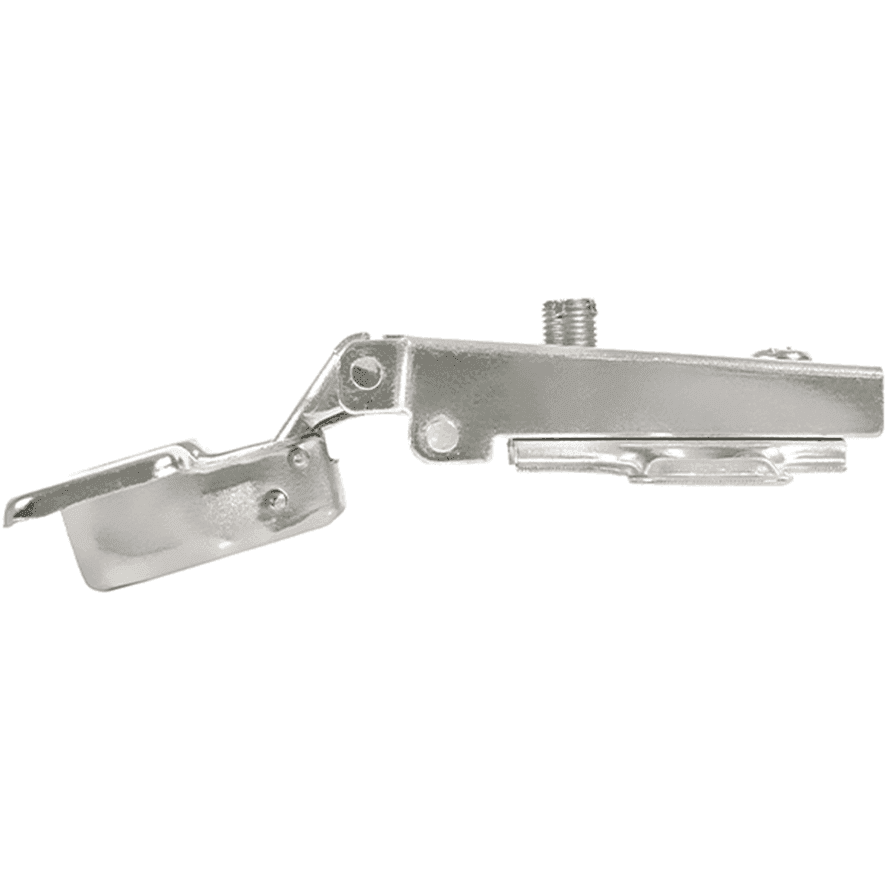

Twin 110° bend 8°
Cross mounting plate H=0 with Euro screws 6.3 x 14
| Number of Euro screws 6.3 x 14 | Index |
|---|---|
| 2 | TJ09.0025.01.064 | |
Recessed 110° bend 15°
Cross guide H=0 with Euro screws 6.3 x 14
| Number of Euro screws 6.3 x 14 | Index |
|---|---|
| 2 | TJ09.0026.01.064 | |
