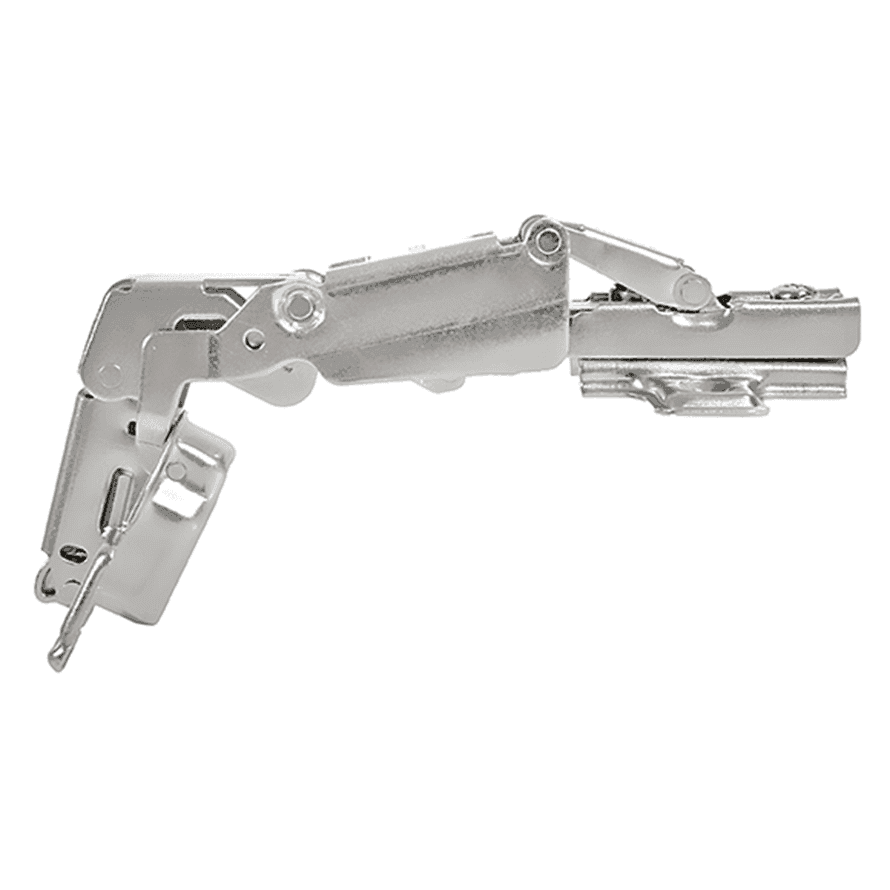

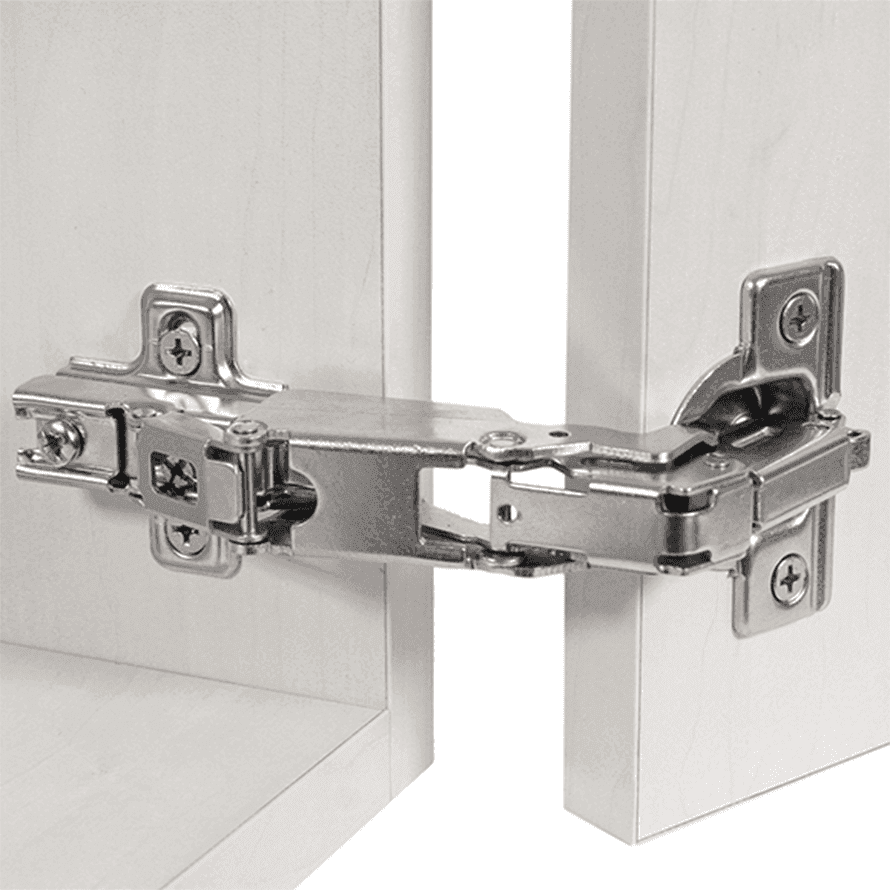

Basic Hinge special application - wide opening angle
Greater freedom with a wide opening angle

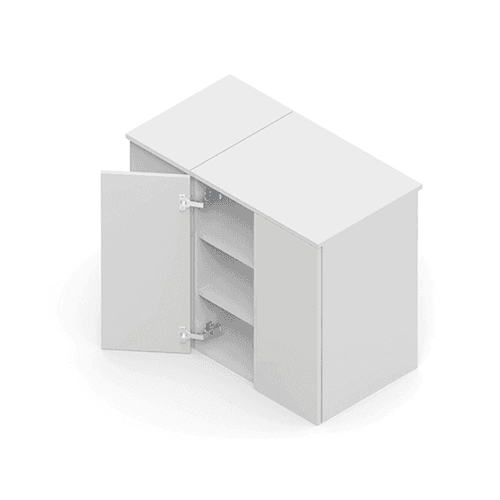

The Basic hinge with a wide opening angle is a solution designed for furniture where a greater range of front movement is needed. The 165° opening angle provides convenient access to the interior of the cabinet and is suitable for installations requiring wide door openings. The adjustment option facilitates precise front positioning.
Cechy produktu
- 165° opening angle
- Cup Ø35 mm
- Cup depth 11 mm
- Adjustable in 3 dimensions
- Guide H=2
- Tested for 80,000 cycles
Kolory i wykończenia
- 064Nickel
Overlay 165°
Cross Mounting Plate H=2 with Euro Screws 6.3 x 14
| Number of Euro Screws 6.3 x 14 | Index |
|---|---|
| 2 | TJ01.5811.01.064 | |
Cross Mounting Plate H=2 for Screw 3.5 x 16
| Index |
|---|
TJ01.9711.01.064 | |
