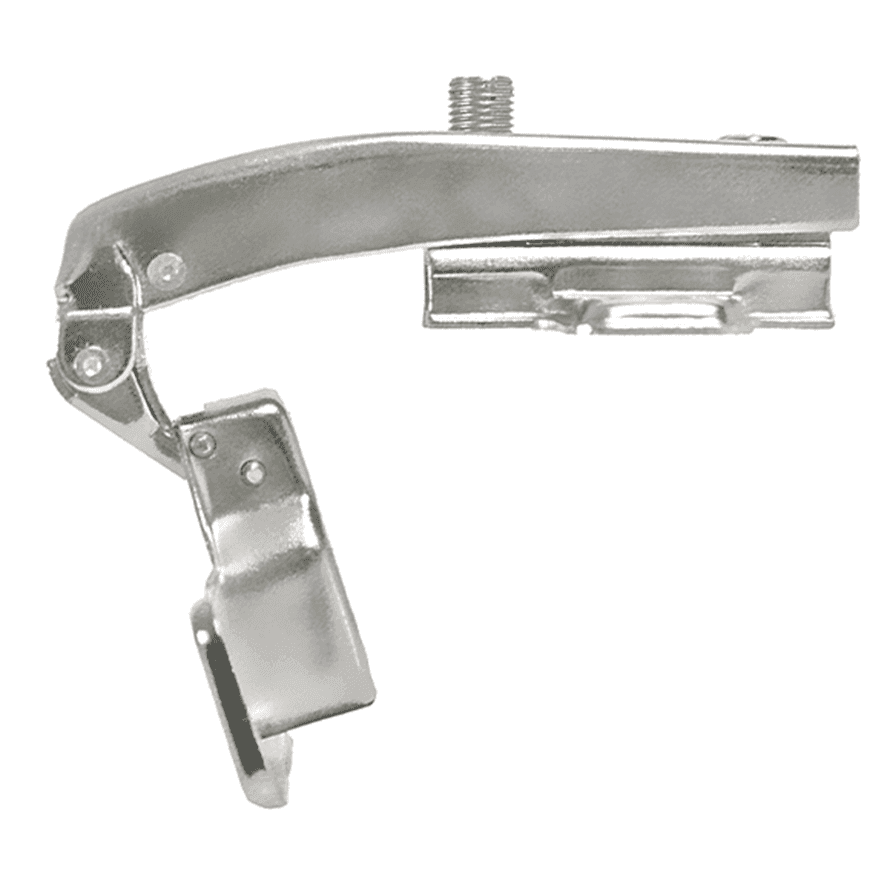

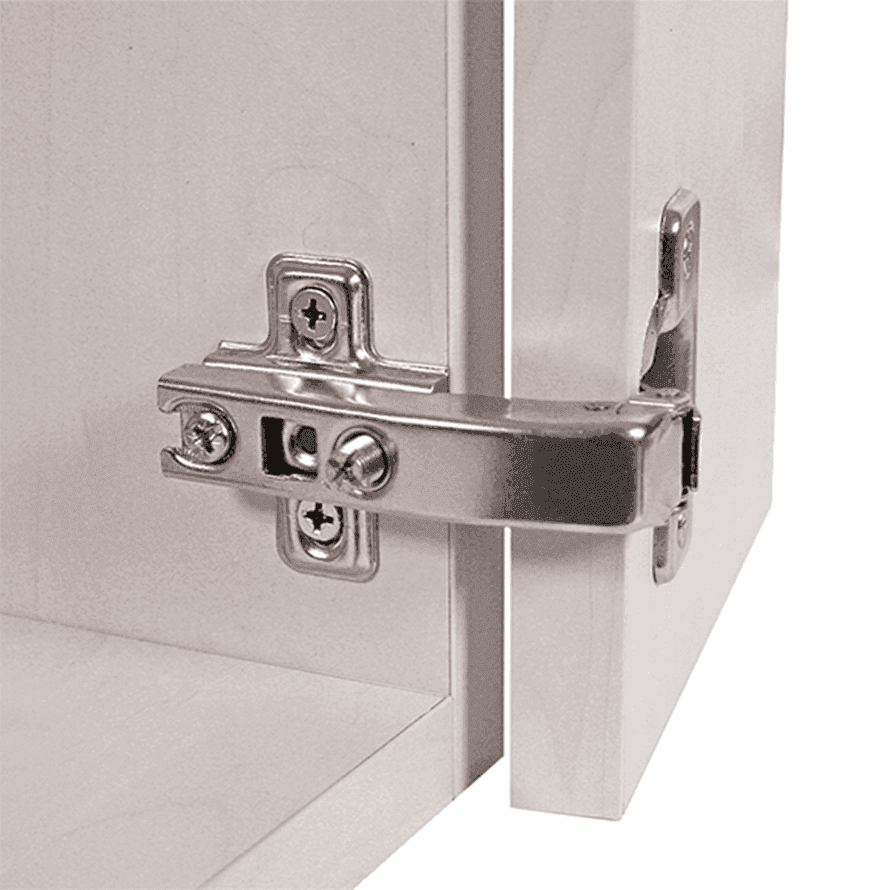

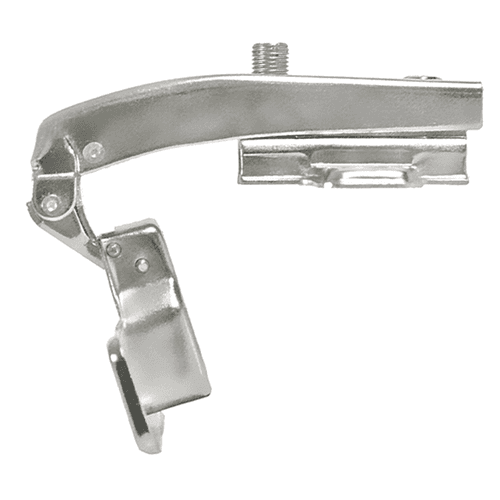

Basic Hinge parallel application
Solution for parallel mounting of fronts

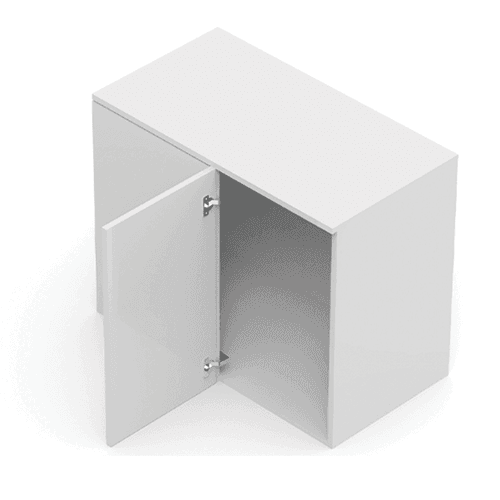

The Basic Hinge for parallel application is intended for furniture constructions where the front is set parallel to the body element. The special geometry of the hinge allows for proper guiding and opening of the front, and the possibility of adjustment facilitates its precise setting. A functional solution for non-standard furniture assembly layouts.
Cechy produktu
- Opening angle 100°
- Cup Ø35 mm
- Cup depth 11 mm
- Adjustable in 3 dimensions
- Guide H=2
- Tested for 80,000 cycles
Kolory i wykończenia
- 064Nickel
Recessed +90°
Cross guide H=2 with euro screws 6.3 x 14
| Number of euro screws 6.3 x 14 | Index |
|---|---|
| 2 | TJ01.5809.01.064 | |
Cross guide H=2 for screw 3.5 x 16
| Index |
|---|
TJ01.9709.01.064 | |
