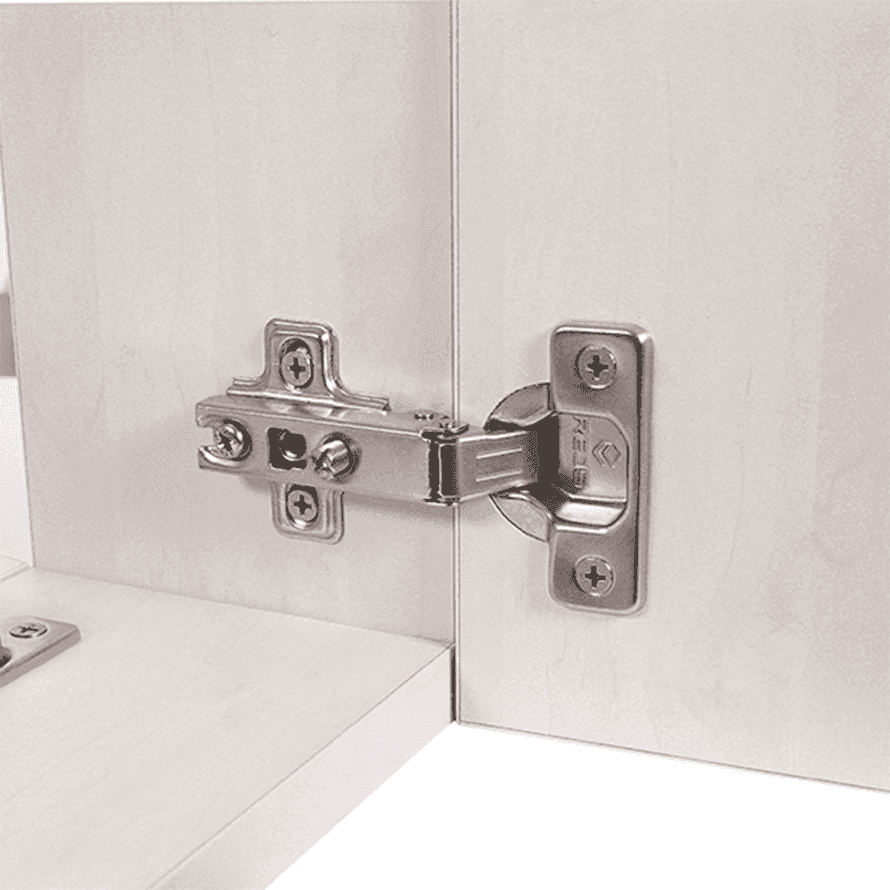

Basic Hinge for Standard Applications
Simple Solution for Standard Applications
The Basic Hinge is a functional solution designed for standard furniture applications. The 110° opening angle provides convenient access to the cabinet interior, and the adjustable feature allows for precise front alignment. The hinge is available in variants for different front mounting methods and is compatible with guides of height H=0 or H=2.
Cechy produktu
- 110° opening angle
- Ø35 mm cup
- Cup depth 11 mm
- Adjustable in 3 dimensions
- Guide H=0 or H=2
- Tested for 80,000 cycles
Kolory i wykończenia
- 064Nickel

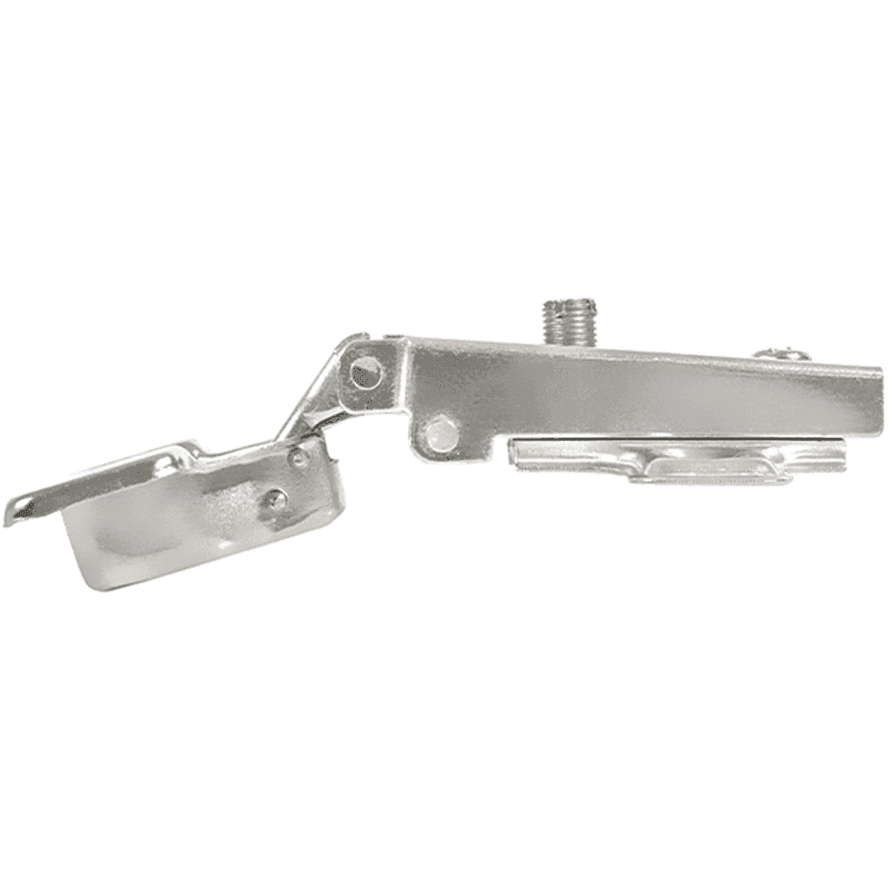

Twin 110° bend 8°
Cross guide H=0 with euro screws 6.3 x 14
| Number of euro screws 6.3 x 14 | Index |
|---|---|
| 2 | TJ01.5802.01.064 | |
Cross guide H=2 with euro screws 6.3 x 14
| Number of euro screws 6.3 x 14 | Index |
|---|---|
| 2 | TJ01.8903.01.064 | |
Cross guide H=0 for screw 3.5 x 16
| Index |
|---|
TJ09.0011.01.064 | |

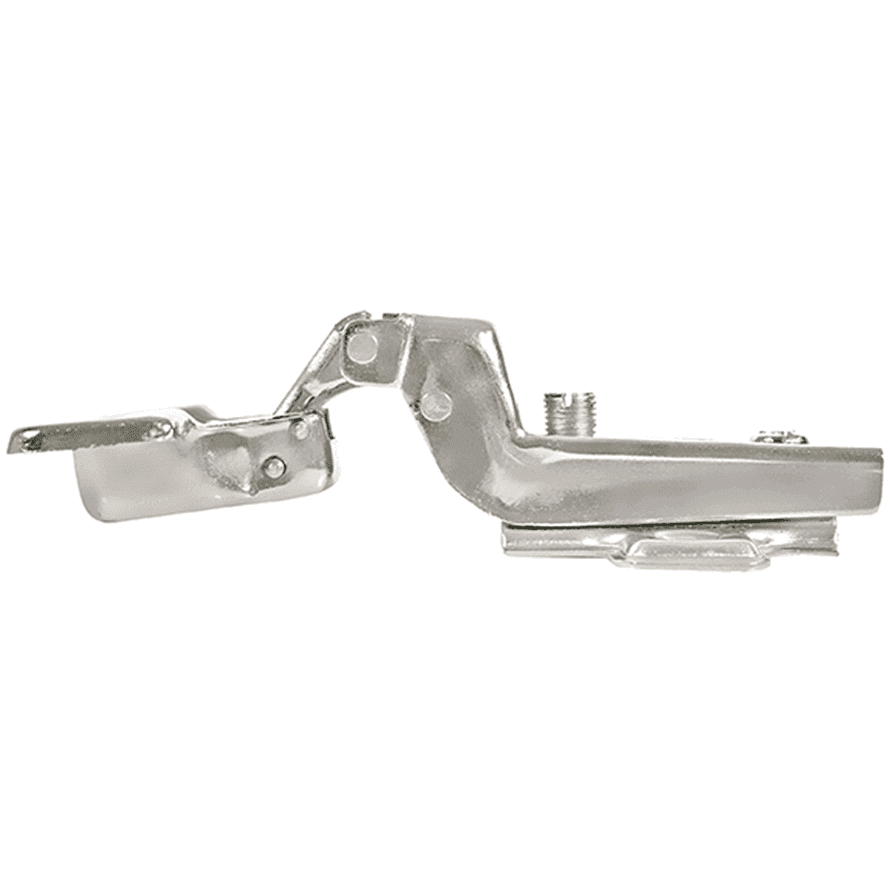

Recessed 110° angle 15°
Cross guide H=0 with euro screws 6.3 x 14
| Number of euro screws 6.3 x 14 | Index |
|---|---|
| 2 | TJ01.8904.01.064 | |
Cross guide H=2 with euro screws 6.3 x 14
| Number of euro screws 6.3 x 14 | Index |
|---|---|
| 2 | TJ01.5804.01.064 | |
Cross mounting plate H=0 for screw 3.5 x 16
| Index |
|---|
TJ09.0009.01.064 | |
